1.  Introduction

The Warehousing Logistics DLC is a digital twin scene resource pack developed by DataMesh, tailored for the warehousing and logistics sector. It enables users to quickly create digital twin scenes for warehouse environments, simulate standard operating procedures (SOPs), and supports multi-device interaction and data-driven management. This helps enterprises enhance operational efficiency and improve workforce training outcomes.

2.  Core Capabilities and Technical Features

The FactVerse Warehousing Logistics DLC offers end-to-end technical support for building and deploying warehouse digital twin scenes through no-code configuration, reusable templates, and data-integrated logic. Key features include:

1. Rapid Scene Creation (No Code & Drag-and-Drop)

• Includes prebuilt warehouse environment templates and 3D model assets.
• Users can construct digital twin scenes directly in the editor via intuitive drag-and-drop operations to place twins, define paths, and configure logic.
• A visual, real-time editing experience lowers the barrier to entry, empowering frontline staff to participate in scene creation.

2. Process Simulation and Logic Configuration (SOP Optimization)

• Built-in templates for core logistics processes, such as inbound/outbound handling, loading/unloading, and picking.
• Supports node-based “connection” logic to define equipment collaboration and logistics flow (e.g., material handoffs between AGVs and workstations).
• Enables debugging via breakpoints and playback of process flows to verify logic and iterate quickly.

3. Real-Time Data Integration and Multi-Model Support (Data-Driven)

• Supports importing BIM, CAD, and 3D scan formats to accurately reconstruct real warehouse environments.
• Allows binding to IoT dashboards (e.g., AGV load, stacker throughput, conveyor speed) to dynamically drive scene behavior.
• Includes anomaly prediction and alerting capabilities for operational validation and configuration assessment.

4. Multi-Device Compatibility and Immersive Experience (Cross-Platform XR)

• Runs across PC, mobile, and AR/MR/XR devices.
• Offers immersive, full-scale spatial interactions ideal for remote guidance and training simulations.
• Physical collision detection is supported in FactVerse Designer 7.3.0 (not included in this DLC), enhancing simulation realism and safety validation.

5. Standardized Template Resources (Public Resource Library)

• Provides a library of standardized digital twin templates, behavior trees, and 3D assets.
• Resources are easily accessible via the “Public Directory”, streamlining onboarding.
• All templates are ready-to-use and support both reuse and user customization.

3.  Typical Application Scenarios

On-Site Operations Simulation

• Dynamic Path Planning: Visualizes AGV movement in real time to optimize routing and prevent collisions.
• Process Training and SOP Testing: Enables simulation of key logistics processes such as receiving, shipping, and picking.
• Warehouse Layout Optimization: Assesses the impact of different storage strategies (e.g., FIFO, ABC classification) to improve space utilization and cost efficiency.

Data-Driven Decision Making

• Real-Time Equipment Monitoring: Visual dashboards for inventory levels, stacker efficiency, task flows, and more.
• Anomaly Detection: Triggers alerts for abnormal conditions and validates system logic under stress scenarios.

4.  DLC Contents

The Warehousing Logistics DLC package includes the following resources:

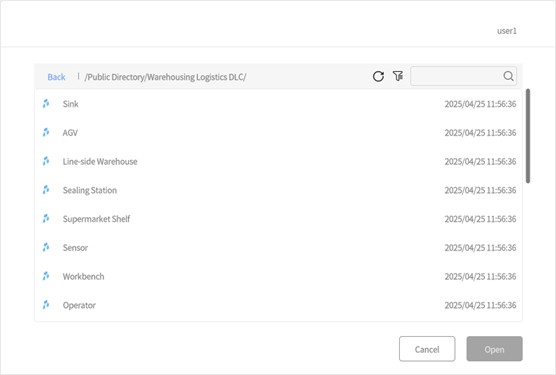

Digital Twin Templates

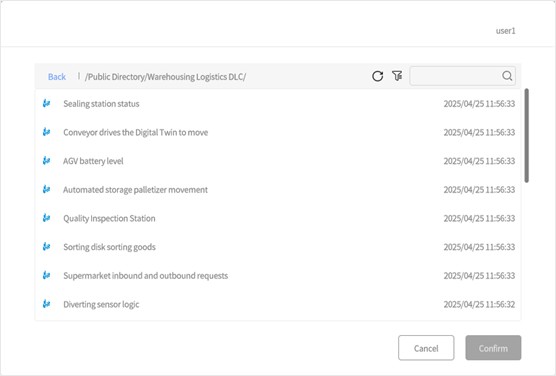

Behavior Trees

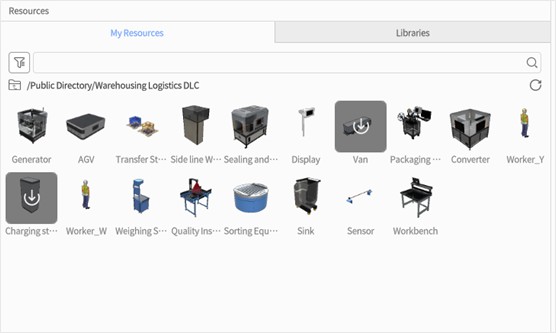

3D Models Assets

Preset Digital Twins

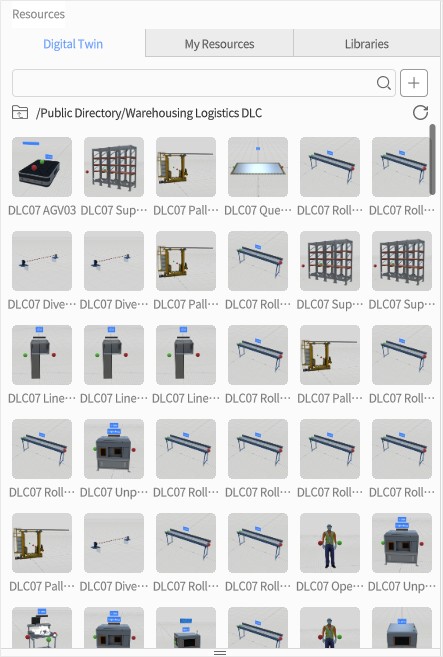

Figure 5 Digital Twins

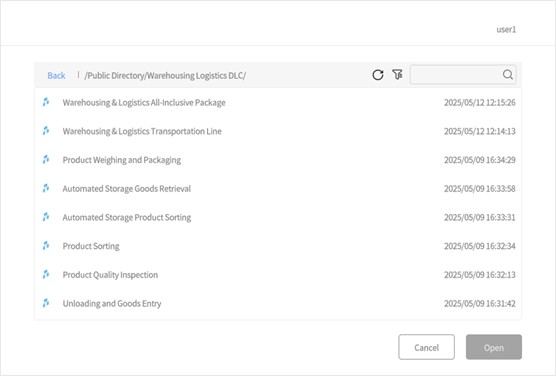

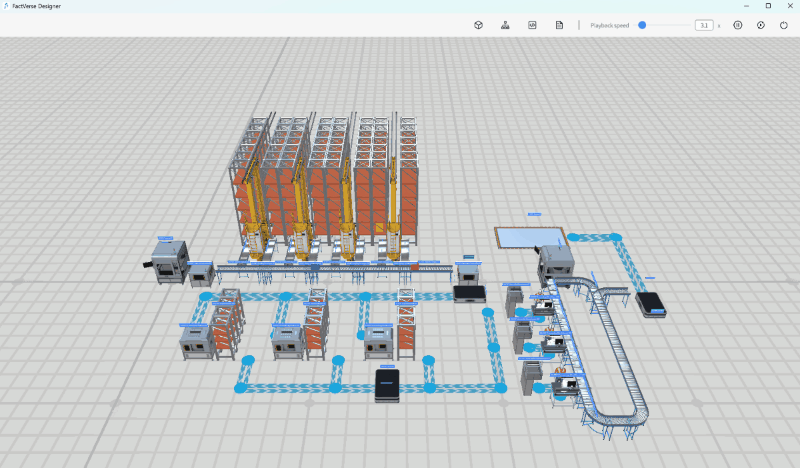

Preset Digital Twin Scenes

Supported Languages: Simplified Chinese, Traditional Chinese, English, Japanese

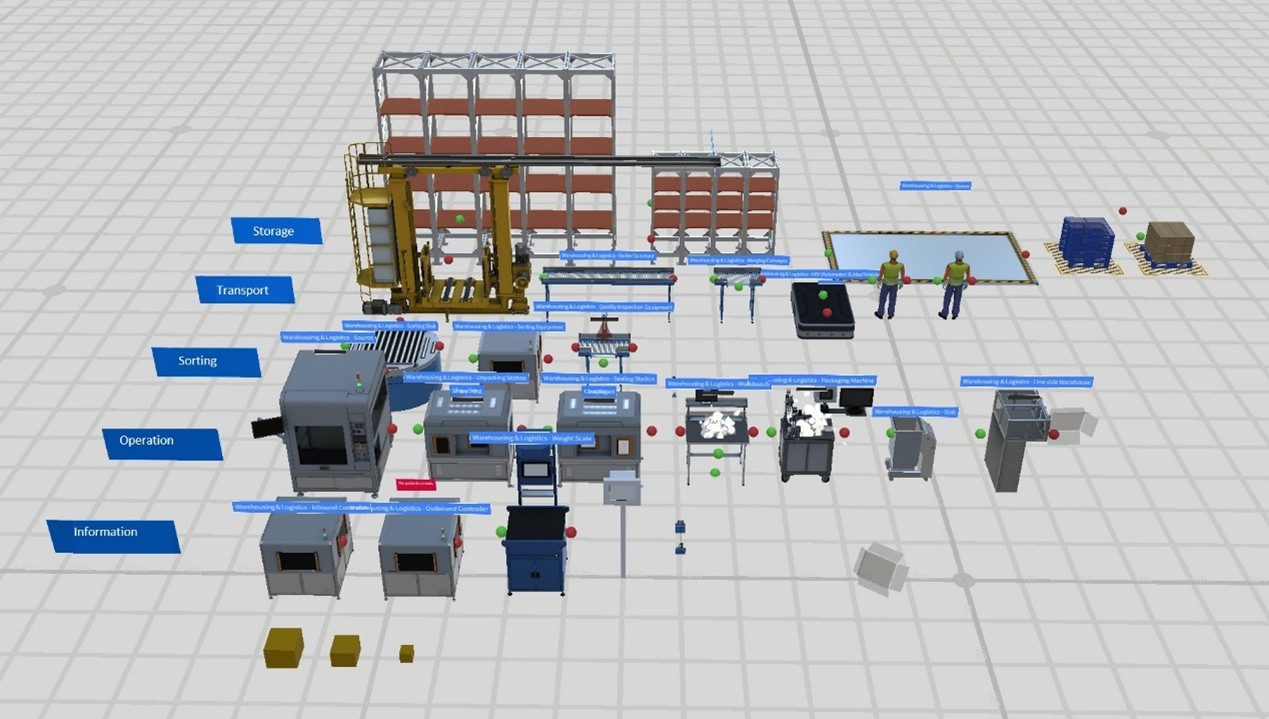

Template Categories Overview

5.  Getting Started

Follow these steps to begin building and simulating digital twin scenes with the FactVerse Warehousing Logistics DLC:

1. Apply for an Account: Contact: hol@datamesh.com to request a FactVerse account and obtain access credentials.
2. Install the Client: Download and install the FactVerse Designer desktop application.

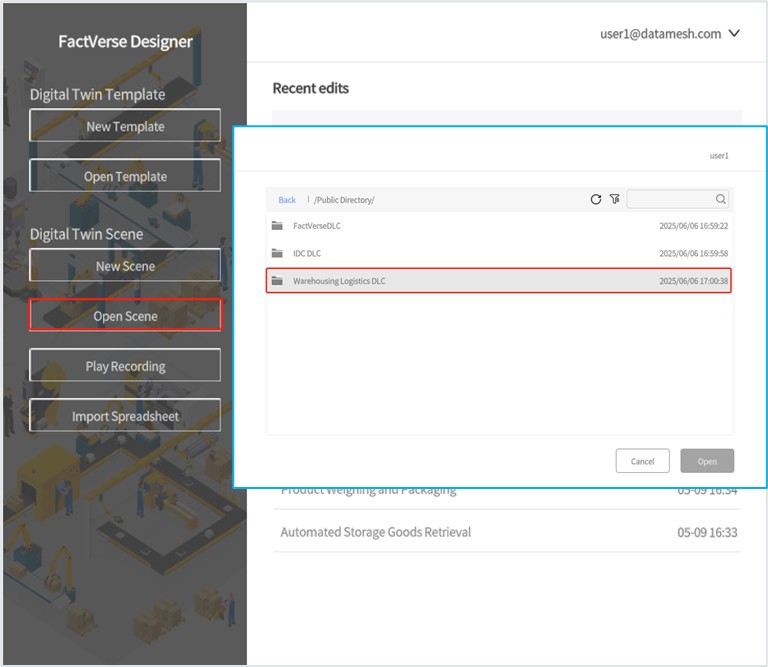

3. Access DLC Resources: Launch the client, navigate to Public Directory > Warehousing Logistics DLC to explore and use the templates and resources.

4. Scene Building Workflow

For more detailed instructions and advanced capabilities, refer to the FactVerse Designer User Manual.
