User interface

Homepage

The homepage of DataMesh FactVerse Services is divided into two modules: the Data page and the Business page.

The Data page presents information about the user’s enterprise, department, and position, along with digital twin and data views of all resources. It offers an overview of enterprise digital assets, facilitating data analysis and management.

On the Data page, you can click the button to switch to the Business page.

The Business page provides the following functions:

Common Modules: Users can set common functions for quick access.

Recently Visited: Quickly access the most recently used function modules through the list of recently visited features.

My Task: View task reminders and understand pending tasks.

Recently Created: Display the latest work projects or events created by the user in the function module, making it easy for the user to find the latest work project or event.

Function navigation bar

The left-side function navigation bar allows users to quickly access various function modules. Depending on the user’s permissions and license settings, users can see and access different function modules. Certain function modules may be invisible or inaccessible to users. Administrators can customize function access and operation permissions based on the roles and needs of different users to ensure data security and management flexibility. For more information, please refer to Enterprise management > User permission management.

Menus

The menus on the top of the page are as shown in the figure:

The functions of the menus from left to right are as follows:

DMTalk

DMTalk can engage in real-time conversations with users and provide intelligent replies. Users can click on the To speech button below the reply, select the desired language and storage location, and generate the corresponding voice resource. The generated voice resource will be saved in the Resources of the FactVerse Services platform, and users can download and use it at any time. Additionally, users can also edit and manage the generated voice resources, such as setting the voice file name, tags, descriptions, and other attributes, making it easier to use and manage later.

Language

Users can switch the page language, including Simplified Chinese, English, Japanese, and Traditional Chinese.

Message

After clicking the icon , the list of the most recent five unread messages are displayed. Click Show all messages under the messages to enter the Message Center page, where you can view all workgroup messages and resource processing reminder information.

Account function menu

After clicking the username, the account function menu is displayed.

The account function menu includes the following function options:

Enterprise Switch: If you have multiple enterprise accounts, you can click on the username in the menu bar, select the Enterprise Switch option in the drop-down menu, and then select the company account you need to use from the displayed enterprise list. If you only have one enterprise account, this option will not be displayed by default.

Scan the code to log in: Scan the code to log in function provided by FactVerse Services can quickly log in to the account on DataMesh One, which is convenient for login on mobile devices. Click on the username in the menus, select the Scan the code to log in option in the drop-down menu, and the system will automatically generate a QR code that refreshes every minute. Open the DataMesh One application and scan the QR code to quickly log in to the account on the mobile end.

My logs: The content of my logs is the log content uploaded by various clients. The cause of the problem can be quickly found through the uploaded logs. Currently, each application can upload the last seven logs to FactVerse Services.

Change the password: Change the login password of the currently logged-in account. After clicking change the password, fill in the login password, new password, and confirm the new password on the change the password page, and click Confirm to complete the modification of the login password.

User Information: After the user clicks the User Information option, you can view and modify your avatar, nickname, and name on the User Information page.

Log Out: Click to log out, and the user can log out of the currently logged account and jump to the login page.

Directory

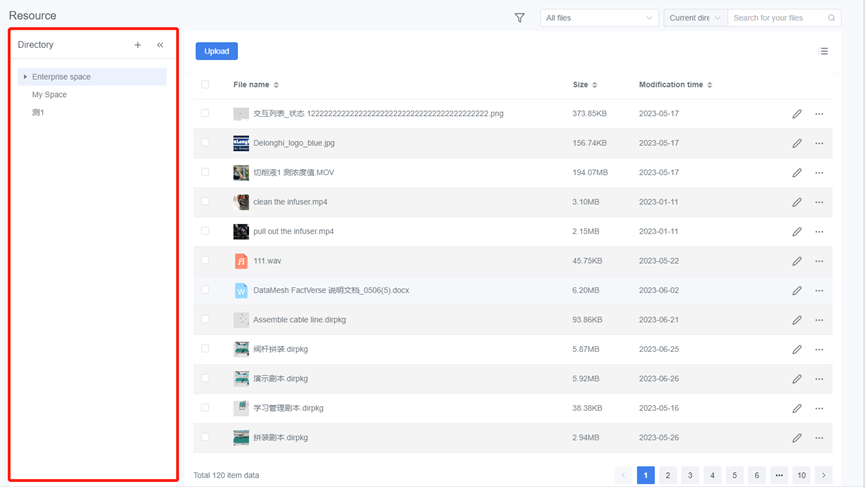

The Digital Twin and Equipment Spot Check modules display all accessible directories in the directory bar of the corresponding pages, facilitating users to manage digital twin assets, resources, and more.

In the FactVerse Services platform, directories are divided into three types: departmental directories, user private directories, and user-created public directories.

• • Departmental directories: When an administrator creates a department, the system automatically creates a corresponding directory for that department. This departmental directory can be used to organize and manage the data and resources of that department. When a department is deleted, the departmental directory will also be automatically deleted.
  • User private directory: Each user in the FactVerse Services platform is automatically assigned a private directory named “My Space” to store personal data and resources. Only the user himself/herself can access and view their private directory, and other users cannot see the private directory and its contents. Private directories can be used for personal storage and management.
  • User-created public directories: Users with permission to create top-level directories can create public directories and add users who can access them. User-created public directories can be used for sharing and collaboration.
